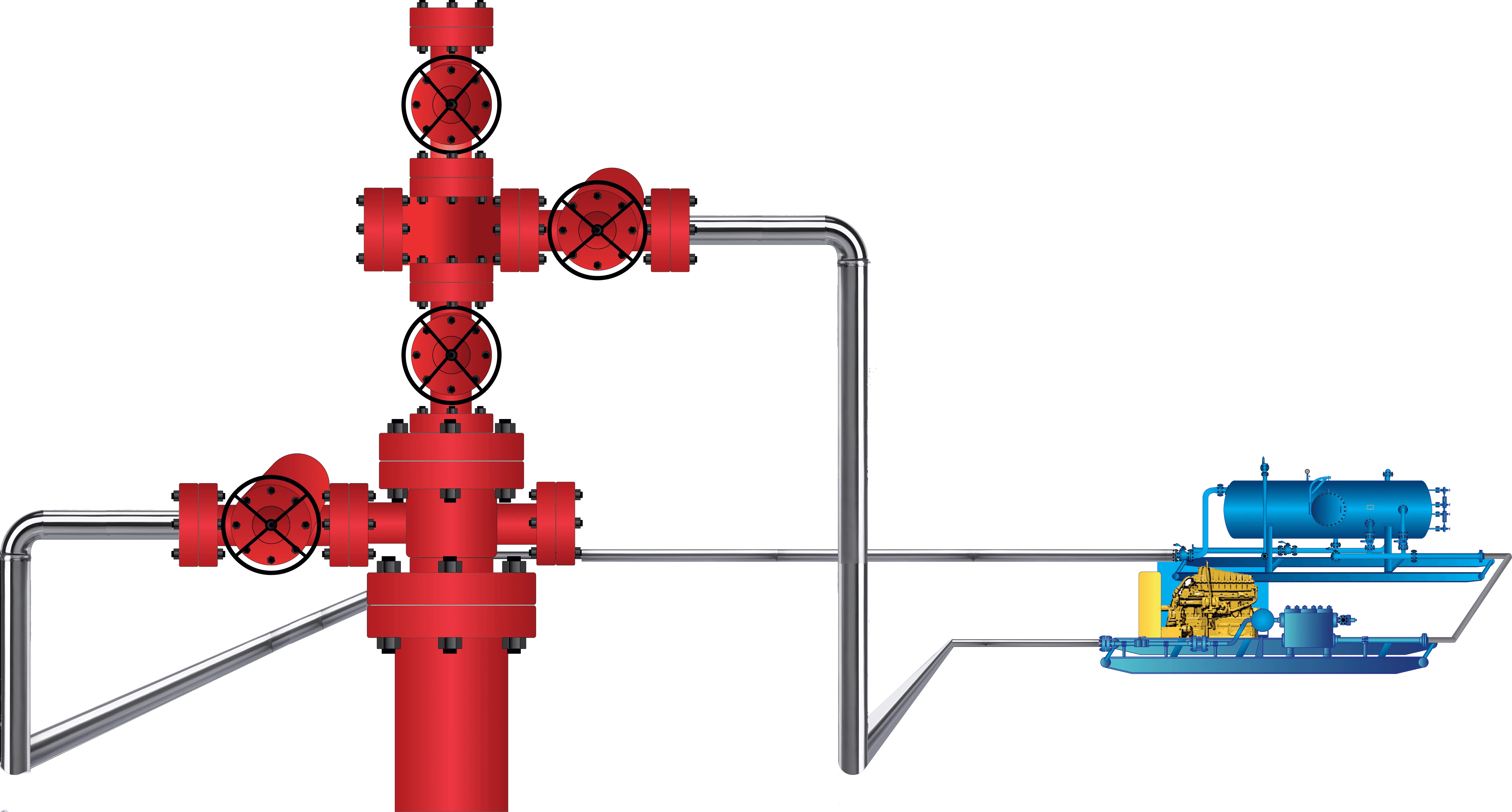

Surface package
Injection line
Vessel
Surface pump
Return line
Well head
Well completion should be equipped with SSD and Packer to operate the Jet Pumping System

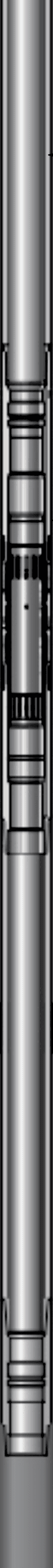

Tubing
Annulus
SSD
Packer
Run the Jet Pump assembly by Wireline into the well hole
Run the Jet Pump assembly by Wireline into well hole
Well completion should be equipped with SSD and Packer to operate the Jet Pumping System.
Jars Down
<- Expand Dogs
Pull out the wireline tool to the surface
The Jet Pump Ready to Operate
The Jet Pump Cross Section
The Jet Pump Fluid flow for operation
<- Power Fluid from Surface Pump
<-Well fluid from reservoir
<-Mixed (Return) Fluid to Surface
